Byagenewe kuyobora, guhagarikwa, hamwe nubukanishi bwo guhuza porogaramu, SQD Ball Yifatanije na Spherical Bearings yakozwe kugirango itange ingendo yizewe yizunguruka, inkunga nziza yimitwaro, hamwe nibikorwa bihoraho mubisabwa bikora.
Kumenyekanisha ibicuruzwa
Umubiri:Yakozwe kuva hejuru - ibyuma byiza bya karubone cyangwa ibyuma bivanze, bitanga imbaraga zubukanishi kandi ndende - igihe kirekire munsi yumutwaro uremereye.
Umupira w'amaguru:Icyitonderwa - gikozwe nubushyuhe - bivura ubukana bwongerewe imbaraga, byemeza neza neza, kuvuga neza, hamwe no kurwanya kwambara.
Kwicara:Yashizweho kugirango ikomeze kugenda neza mugihe hagabanijwe gukuraho, bifasha kunoza imikorere no kugabanya kunyeganyega mugihe cya serivisi.
Kurangiza Kurinda:Iraboneka hamwe na plaque ya zinc, zinc - isahani ya nikel, cyangwa ubundi buryo bwo kuvura hejuru kugirango tunonosore ruswa kandi wongere igihe cyibicuruzwa ahantu habi.
Inyungu z'ingenzi:Imiterere yoroheje, umutwaro muremure - ufite ubushobozi, kugenda neza, no gukora neza kubikorwa byimodoka, inganda, hamwe nubwubatsi bwihariye.
Ibipimo bya tekiniki

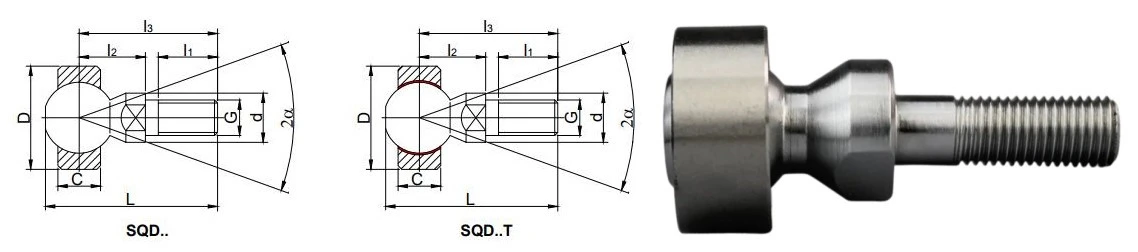

SQD Umupira uhuriweho hamwe
| Igice No. | Urupapuro rwamakuru (metric) | |||||||||||
| Ibyuma | Icyuma kuri PTFE | GThread 6g | D | C | d | Lmax | l1min | l2 | l3max | impamyabumenyi » | Umutwaro uhagaze neza »(kN) | Uburemere »(kgs) |
| SQD5 | SQD5T | M5 | 16 | 6 | 9 | 27 | 8 | 11 | 22 | 25 | 8.8 | 0.015 |
| SQD6 | SQD6T | M6 | 18 | 6.75 | 10 | 33 | 11 | 12.2 | 27.2 | 25 | 9.8 | 0.023 |
| SQD8 | SQD8T | M8 | 22 | 9 | 12 | 41 | 12 | 16 | 33 | 25 | 16.8 | 0.045 |
| SQD10 | SQD10T | M10X1.25 | 26 | 10.5 | 14 | 49 | 15 | 19.5 | 39.5 | 25 | 23 | 0.070 |
| SQD12 | SQD12T | M12X1.25 | 30 | 12 | 17 | 55 | 18 | 21 | 44 | 25 | 31 | 0.110 |
| SQD14 | SQD14T | M14X1.5 | 34 | 13.5 | 19 | 70 | 25 | 23.5 | 58 | 20 | 42 | 0.170 |
| SQD16 | SQD16T | M16X1.5 | 38 | 15 | 22 | 76 | 26 | 25.5 | 62 | 20 | 50 | 0.240 |
| SQD18 | SQD18T | M18X1.5 | 42 | 16.5 | 23 | 80 | 28 | 31 | 72.5 | 20 | 62 | 0.395 |
| SQD20 | SQD20T | M20X1.5 | 46 | 18 | 27 | 84 | 28 | 29 | 70 | 20 | 74 | 0.490 |
| SQD22 | SQD22T | M22X1.5 | 50 | 20 | 27 | 90 | 30 | 33 | 75 | 20 | 90 | 0.585 |
| Inzu (Kwiga) | Umupira wamaguru | KWIYIGISHA - LUBR |
| Ibyuma bya karubone 1045 zinc yashizwemo cyangwa Chrome molly 4135, ubushyuhe buvurwa, hejuru ya zinc | Irashobora gukorwa nkigice 1 cyangwa 2-bishingiye kubisabwa bitandukanye | PTFE liner iboneka kumavuta yubusa: |
Ibibazo
Q1: Ese imipira ya SQD ihuriweho na Spherical Bearing yakira guhuza inguni?
Igisubizo: Yego. Igishushanyo mbonera cyemerera kugenzurwa ninguni, bifasha kwishyura indishyi zidahuye nogukora ingendo.
Q2: Ubushyuhe bwumupira pin buravurwa?
Igisubizo: Yego. Umupira wumupira mubusanzwe ubushyuhe buvurwa kugirango butezimbere ubukana, kwambara birwanya, hamwe nuburemere - gutwara ubushobozi.
Q3: Ni ubuhe buso burangiza burahari?
Igisubizo: Amahitamo asanzwe arimo plaque ya zinc, zinc - isahani ya nikel, okiside yumukara, nubundi buryo bwo kuvura busanzwe bitewe nibidukikije.
Q4: Nigute nahitamo icyitegererezo cyiza cya SQD?
Igisubizo: Guhitamo gushingiye kubunini bwurudodo, ibipimo byerekana, ibisabwa byumutwaro, hamwe nu mwanya wo kwishyiriraho. Igishushanyo cya tekiniki kirashobora gutangwa kugirango kigenzurwe.
Q5: Ese kwifata birakwiriye guhangayikishwa no kwikuramo imitwaro?
Igisubizo: Yego. Iyo ushyizwemo neza, ingingo irashobora kwihanganira imbaraga zingutu kandi zogusenyera zikunze kugaragara muri sisitemu yo kuyobora no guhagarika.
